Coolmay 7 Inch 1024*600 EX3U-8070HD-44MT-2AD2DA-V-485P Industrial 24v Digital Analog Input Touch Screen Panel Plc HMI Integrated All-in-one
| Miejsce pochodzenia | Chiny |
|---|---|
| Nazwa handlowa | Coolmay |
| Orzecznictwo | CE |
| Numer modelu | EX3U-8070HD-44MT-2AD2DA-V-485P |
| Minimalne zamówienie | 2 jednostki |
| Cena | US$129~299 per unit |
| Szczegóły pakowania | Zapakowane w standardowe pudełko kartonowe |
| Czas dostawy | 3-5 dni roboczych |
| Zasady płatności | T/T, Western Union |
| Możliwość Supply | 100 000 sztuk miesięcznie |
Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xSzczegóły Produktu
| Rodzaj | Kontroler przemysłowy | Cyfrowe wejścia/wyjścia | 24DI/20DO |
|---|---|---|---|
| Rodzaj wyjścia | Tranzystor | PID | - Tak, proszę. |
| Wyjście HS | Y0~Y3 100 kHz, Y4~Y7 10 kHz | Ethernet | Tak dla PLC |
opis produktu

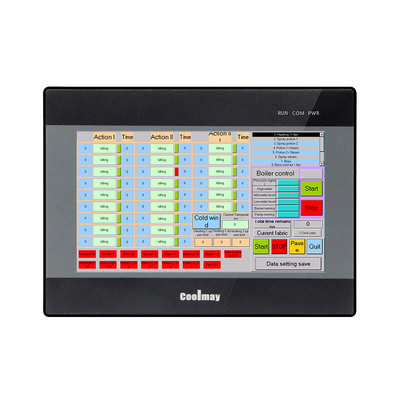

7 Inch Industrial 24v Digital Analog Input Touch Screen Panel Plc HMI Integrated All-in-one
EX3U-80 HMI PLC combo series are powerful programmable controllers with incredible HMI features, backed by the most efficient programming software mView. It is superbly compact, 4.3", 5″, 7” or 10.1″ are highly compact controllers, where the PLC, HMI, and I/Os are built into a single unit and in a range of built-in I/O configurations.
Features
-
Built-in, high-quality 4.3", 5″, 7” or 10.1″ HMI touch panel
-
Powerful PLC: 32,000 steps program, support PID automation
-
Built-in COM ports: RS232, RS485, USB type C, Ethernet (optional)
-
Support high-speed counting, high-speed pulse, communication port integrated
-
Support arc and linear interpolation
Specifications
|
Model |
EX3U-8070H-44MT-485P |
|
|
Display |
Dimension |
200*146*36mm |
|
Cutout size |
192*138mm |
|
|
Power Consumption |
6-7W |
|
|
Feature |
60K-color resistive touch screen, supports portrait display |
|
|
Memory |
RAM |
256MB |
|
ROM |
NOR Flash 256MB |
|
|
CPU |
CPU Dual-core 1GHz |
|
|
I/O |
DI/DO |
24DI/20DO, transistor outputs, NPN input |
|
High-speed function |
High-speed counting |
Single phase 6 channel 60KHz |
|
High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. |
|
|

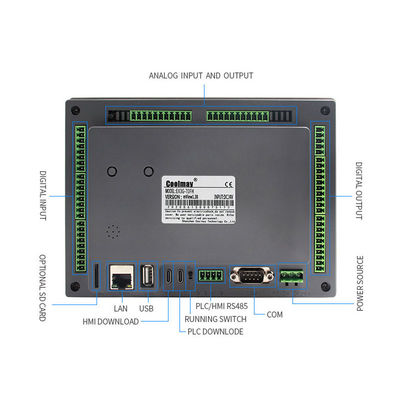

Connection |
HMI |
Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port |
|
PLC |

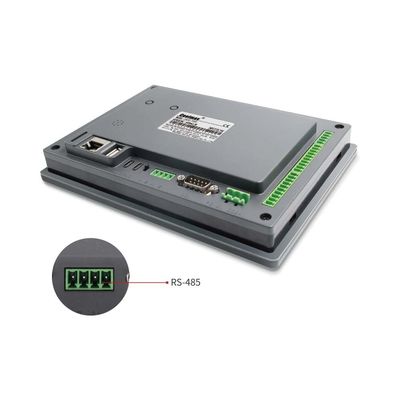

1 TYPE-C, 1 RS232 (program port), 1 RS485 communication port |
|
|
Software |
HMI |
Coolmay VCool HMI Programming Software |
|
PLC |
Coolmay Vtool pro |
|
Positioning control——high-speed pulse
-
Transistor output CPU: conventional 8-axis, YO-Y3 is 100KHz,Y4-Y7 is 10KHz
-
Support positioning, can quickly complete the positioning function, up to 8 axies
-
Each axis control is realized by instructions, PLC program is highly readable and easy to maintain
Short time to download program
-
Based on Tycpe-C/Type-B port, mini USB port, program download is quick and time-savingThe USB interface conforms to the USB specification and uses a commerciallyavailable USB cable, which can perform high-speed data transmission and greatlyshorten the download time.
-
Through the USB penetration function of the touch screen,HMl and PLC program-ming use the same programming cable, users do not need to change repeatedly, allonly need one cable.
Applications
Hot air sealing machine
Process flow diagram
